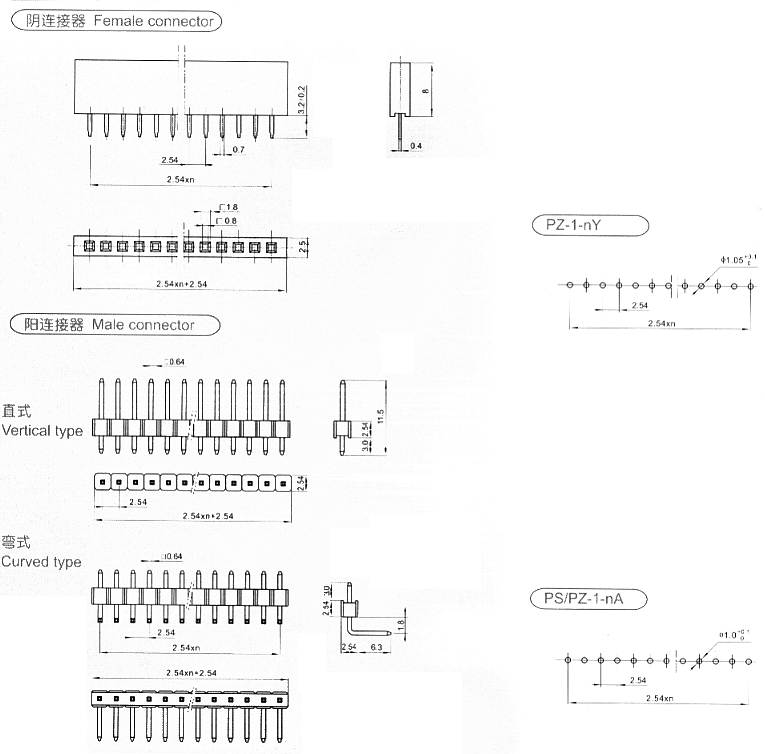

Wafer and Housing PZ-1-nY/nA
zoom
Specification:
 Specifications:
 Pitch:  2.54mm
 Lines:  240
 PC board thickness:  1.6mm
 Environmental temperature:  -2585
 Relative humidity:  93% 40
 Voltage rating:  250V AC max
 Current rating:  1A max
 Insulation resistance:  1000M
 Contact resistance:  0.03
 Resist-electric strength:  500V AC/1Minute
 Material:
 Housing:  PBT UL94V-0
 Pin header:  Brass H62
 Reed:  Tin-bronze
