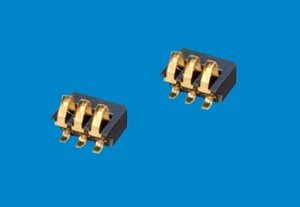

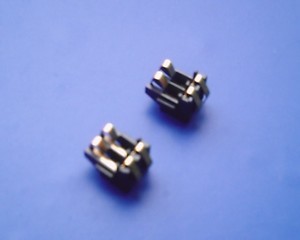

Battery connector series DC0143-3P
zoom
Specification:
 SPECIFICATIONS:
 Pitch:  1.60mm
 Environmental temperature:  -40--+80
 Voltage rating:  250V AC
 Current rating:  2.0A
 Withstand voltage:  1000V AC/1Minute
 Insulation resistance:  1000M
 Contact resistance:  30m
 Life:  10000 Cycles
 MATERIAL:
 Housing:  LCP UL94V-0
 Reed tab:  Be-Cu
 PACKAGE:  Tape and Reel Package
