FPC0530A-nPL/F

 Products Center >> FPC Connector Series >> Click: 187

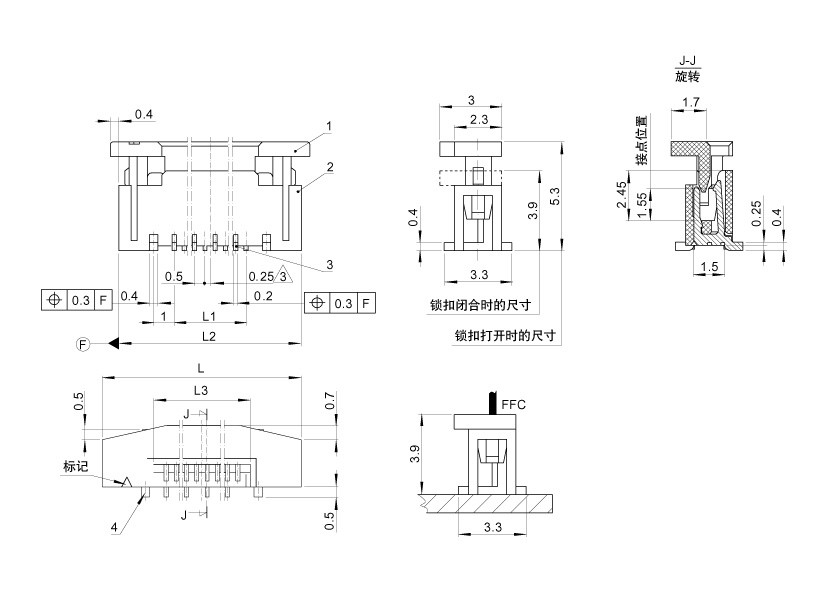

FPC Connector Series FPC0530A-nPL/F
zoom
Specification:
 SPECIFICATIONS:
 Poles:  6-40
 Voltage rating:  50V DC/AC(rms)
 Current rating:  0.5A DC/AC
 Withstand voltage:  250V/1Minute
 Working Temperature:  -20--+80
 Relative Humidity:  93%---+40
 Insulation resistance:  50M
 Contact resistance:  20m
 MATERIAL:
 Slider:  Heat resistance plastic PPS UL94V-0
 Solder tab:  Tin-bronze QSn6.5-0.1 GB2066-89
 Pin header:  Tin-bronze QSn6.5-0.1 GB2066-89
 Housing:  LCP UL94V-0
 PACKAGE:  Tape and Reel Package Pipe Package
