USB 0108-5F/B

 Products Center >> MINI USB series >> Click: 188
MINI USB series USB 0108-5F/B

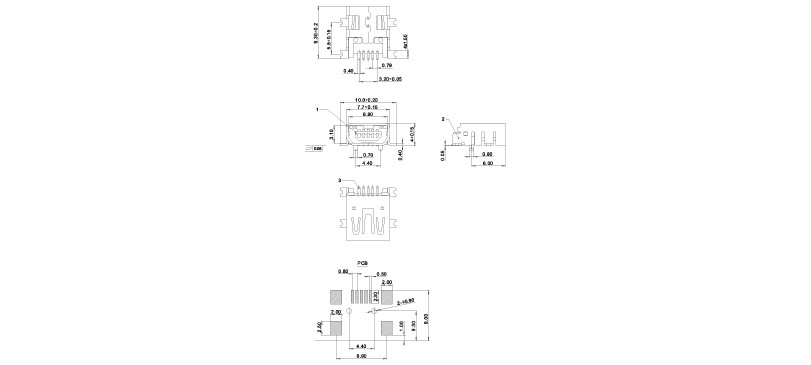

zoom
Specification:
 SPECIFICATIONS:
 Pitch:  0.79mm
 Environmental temperature:  -40--+80
 Voltage rating:  100V AC
 Current rating:  1.0A
 Withstand voltage:  200V AC/1Minute
 Insulation resistance:
 Contact resistance:  50m
 Life:  5000 Cycles
 MATERIAL:
 Housing:  LCP(Black) UL94V-0
 Crust:  Cu/Ep.Ni2.0um(solderability)
 Pin header:  Cu/Ep.(Rearward Ni1.5um.Sn3.5um)(Foreside Ni1.5um.Au15u〃)
 PACKAGE:  Tape and Reel Package
